| Place of Origin: | China |
|---|---|
| Brand Name: | Leding |
| Certification: | CE&RoSH |
| Model Number: | F60RX-I5050-24V-RGBW |
| Minimum Order Quantity: | 50 Reels |
| Packaging Details: | Reel packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Color: | Cool White Warm White Nature White Red Amber Green... | LED Type: | 5050 |
|---|---|---|---|
| Voltage: | 12V DC | LED Qty.: | 60LEDs/m |
| Color Rendering Index(CRI): | ≥80 | CCT: | 2700K, 3000K, 4000K, 6000K |
| Power(Max.): | 14.4w/m | Beam Angle: | 120° |
| Life Span.: | 50000 Hrs. | Dimmable: | NO |
| Cutting Resolution: | 100mm | Application: | IP20 |
| Highlight: | 12V LED Flexible Strips,LED Flexible Strips 5050,Indoor rgbw 5050 led strip 12v |
||

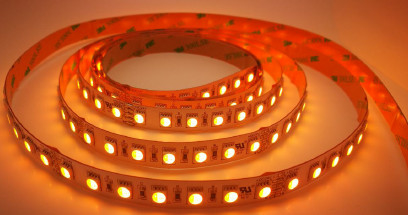

Indoor 5050 RGBW Flexible Strip Light
Description
Leding flexible LED strip provide consistent and reliable illumination for different lighting applications.
Features
- 5050 RGBW LED with silicon tube
- Low power requirement and igh reliability
- Use indoor
- Operating temperature range -40℃--60℃
- Easy assembly.Mounting with double sided adhesive tape.
- Optical operation on 12V power supplies
- 60 LED/m 5m/reel,dividable per 100mm.
- Reel packing.
Application
Decorative lighting
Contour lighting
Amusement
Lighting source of channel letter
Electrical/Optical Characteristics Rating (Ta=25℃)
| Specifications | |
| Product name | Flexible LED Strip |
| Part No. | F60RX-I5050-24V-RGBW |
| Colour | R(620-630nm),G:(515-535nm),B:(460-470nm),W:6000K,4000K,3000K,2700K |
| Colour Temp(CCT) | R G B W:6000K/4000K/3000K/2700K |
| Colour Rendering Index(CRI) | Ra:80( W) |
| Input Voltage | 24VDC |
| Rated Current | 0.6A/m |
| Lumen Output | R:155Lm/m,G:358Lm/m,B:71Lm/m,W:418Lm/m/372Lm/m/351Lm/m/351Lm/m |
| Total Power | 14.4W/m |
| Beam Angle | 120° |
| Life Span(at 25℃) | 50000 hrs |
| Operating Temperature | -20℃ -/+ 60℃ |
| Storage Temperature | -40℃ -/+ 80℃ |
| Application | Use indoor |
| Dimmable | Yes (Optional) |
| RoHS | Yes |
| Cutting Resolution | Cut on wire per 6Leds |
| SDCM | |
| Material | |
| LED Brand | Epistar |
| Housing | --- |
| PCB | FPC |
| PART NO. | Color | CCT |
| F60RX-I5050-24V-RGBW60 | RGBW | R G B W:6000K |
| F60RX-I5050-24V-RGBW40 | RGBW | R G B W:4000K |
| F60RX-I5050-24V-RGBW30 | RGBW | R G B W:3000K |
| F60RX-I5050-24V-RGBW27 | RGBW | R G B W:2700K |
