| Place of Origin: | China |
|---|---|
| Brand Name: | Leding |
| Certification: | CE&RoSH |
| Model Number: | AF600-O116XX-L2 |
| Minimum Order Quantity: | 50 Reels |
| Packaging Details: | Reel packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Color: | Cool White Warm White Nature White Red Amber Green... | LED Type: | 5050 |
|---|---|---|---|
| Voltage: | 12V DC | LED Qty.: | 120LEDs/m |
| Color Rendering Index(CRI): | ≥90 | Lumen Output: | 1250~4000Lm/5m |
| Power(Max.): | 48w/5m | Beam Angle: | 120° |
| Life Span.: | 50000 Hrs. | Dimmable: | NO |
| Cutting Resolution: | 50mm | Application: | IP65 |
| Highlight: | Indoor 3528 LED Strip,Signage 3528 LED Strip,3528 LED Ribbon Lights |
||

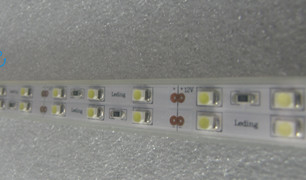

3528 LED ribbon for indoor and outdoor signage illumination
Description
A bright and versatile LED ribbon for indoor and outdoor signage illumination
– available in different wattage ranges that provide the brightness you desire.
Features
- SMD 3528LED
- Low power requirement and igh reliability
- IP65
- Operating temperature range -40℃--60℃
- Easy assembly.Mounting with double sided adhesive tape or silicon buckle
- Optical operation on 12V power supplies
- 120LED/m 5m/reel,dividable per 50mm.
- Reel packing.
Electrical/Optical Characteristics Rating (Ta=25℃)
| Product number | Color | No.of led per metre |
Power supply (VDC) |
Power chain/m(W) |
View angle(°) |
Wavelength(nm)/ | Lum.flux |
| Color temp(K) | Chain/m(lm) | ||||||
| AF600-O116CW-L2 | Cool White | 120 | 12 | 48/9.6 | 120 | 6500K±300K | 4000/800 |
| AF600-O116NW-L2 | Neutral White | 120 | 12 | 48/9.6 | 120 | 4500K±300K | 4000/800 |
| AF600-O116WW-L2 | Warm White | 120 | 12 | 48/9.6 | 120 | 3000K±300K | 3600/720 |
| AF600-O116WW-L2-27K | Warm White | 120 | 12 | 48/9.6 | 120 | 2700K±300K | 3600/720 |
| AF600-O116UR-L2 | Red | 120 | 12 | 48/9.6 | 120 | 625nm | 1870/374 |
| AF600-O116UA-L2 | Amber | 120 | 12 | 48/9.6 | 120 | 590nm | 1870/374 |
| AF600-O116TB-L2 | Blue | 120 | 12 | 48/9.6 | 120 | 470nm | 1250/250 |
| AF600-O116PG-L2 | Green | 120 | 12 | 48/9.6 | 120 | 525nm | 3500/700 |
