| Place of Origin: | China |
|---|---|
| Brand Name: | Leding |
| Certification: | CE&RoSH |
| Model Number: | AF300‐O116XX‐L1 |
| Minimum Order Quantity: | 50 Reels |
| Packaging Details: | Reel packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Color: | Cool White Warm White Nature White Red Amber Green... | LED Type: | 5050 |
|---|---|---|---|
| Voltage: | 12V DC | LED Qty.: | 30LEDs/m |
| Color Rendering Index(CRI): | ≥90 | Lumen Output: | 4000~500Lm/5m |
| Power(Max.): | 60w/5m | Beam Angle: | 120° |
| Life Span.: | 50000 Hrs. | Dimmable: | NO |
| Cutting Resolution: | 100mm | Application: | IP65 |
| Highlight: | 5050 LED Flexible Strips,IP65 LED Flexible Strips,Multifunctional led strip 5050 ip65 |
||

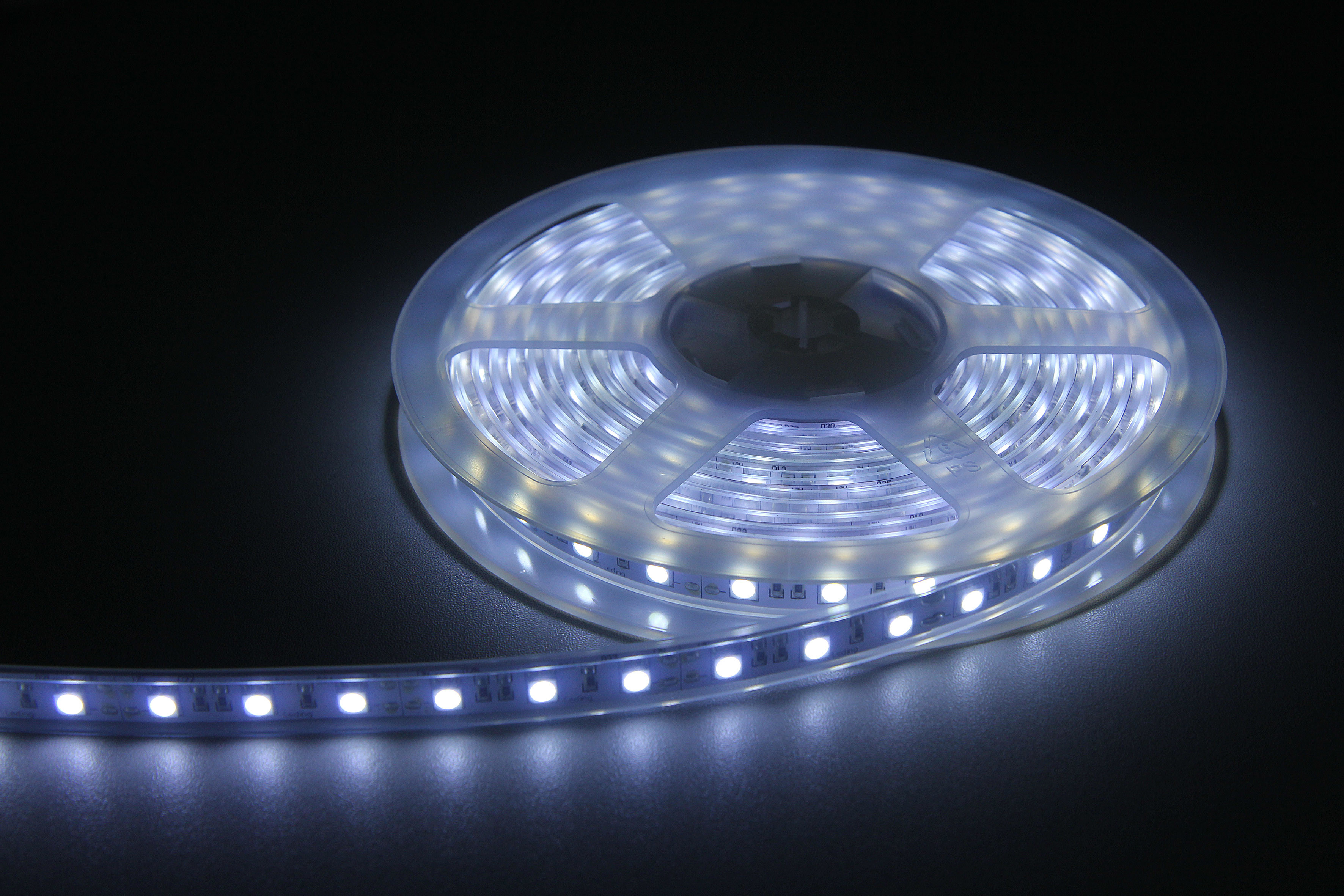

5050 LED Flexible Strip Light
Description
Leding flexible LED strip provide consistent and reliable illumination for different lighting applications.
Application for building spaces and exterior installations: including back lighting of channel letter, signage and illuminated advertising
Features
- 5050 flexible RGB LED strip with silicon tube
- Low power requirement and igh reliability
- IP65
- Operating temperature range -40℃--60℃
- Easy assembly. Mounting with double sided adhesive tape or silicon buckle
- Optical operation on 12V power supplies
- 60 LED/m 5m/reel,dividable per 100mm.
- Reel packing.
Electrical/Optical Characteristics Rating (Ta=25℃)
| Product number | Color | No.of led per metre | Power supply(VDC) | Power chain/m(W) | View angle(°) | Wavelength(nm)/ | Lum.flux |
| Color temp(K) | Chain/m(lm) | ||||||
| AF300-O116CW-L1 | Cool White | 60 | 12 | Dec-60 | 120 | 6500K±300K | 5000/1000 |
| AF300-O116NW-L1 | Neutral White | 60 | 12 | Dec-60 | 120 | 4500K±300K | 5000/1000 |
| AF300-O116WW-L1 | Warm White | 60 | 12 | Dec-60 | 120 | 3000K±300K | 4500/900 |
| AF300-O116WW-L1-27K | Warm White | 60 | 12 | Dec-60 | 120 | 2700K±300K | 4500/900 |
| AF300-O116UR-L1 | Red | 60 | 12 | Dec-60 | 120 | 625nm | 2345/469 |
| AF300-O116UA-L1 | Amber | 60 | 12 | Dec-60 | 120 | 590nm | 2345/469 |
| AF300-O116TB-L1 | Blue | 60 | 12 | Dec-60 | 120 | 470nm | 1565/313 |
| AF300-O116PG-L1 | Green | 60 | 12 | Dec-60 | 120 | 525nm | 4375/875 |
