| Place of Origin: | China |
|---|---|
| Brand Name: | Leding |
| Certification: | RoHS |
| Model Number: | CF-I0510-480-XXR90-24V-L1 |
| Minimum Order Quantity: | 100 Reels |
| Packaging Details: | Reel packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Color: | Cool White/ Nature White /Warm White/Warm White | CCT: | 6500K/4000K/3000K/2700K |
|---|---|---|---|
| Voltage: | 24V DC | Current: | 0.416A/m |
| Color Rendering Index(CRI): | ≥90 | Lumen Output: | 1150Lm/1150Lm/1050Lm/1050Lm |
| Power(Max.): | 10w/5m | Beam Angle: | 170° |
| Life Span.: | 50000 Hrs. | Dimmable: | Yes |
| Cutting Resolution: | 50mm | Application: | IP20 |
| Highlight: | LED Flexible Strips 24V,COB LED Flexible Strips,24V COB LED Strip Light IP20 |
||

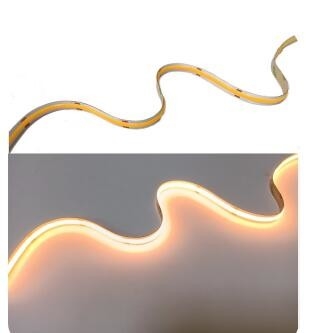

White Color COB LED Flexible Strips
Description
Leding Flexible LED Strip provide consistent and reliable illumination for different lighting applications.
Particular model for particular requirements.
Application for building spaces and exterior installations: including back lighting of channel letter, signage and illuminated advertising
Features
1. COB LED
2 5 meter per reel
3. Dividable length:100mm
4. Indoor use LED light bar and linear light
2. Optical operation on 24V power supplies
| Specifications | |
| Product name | Flexible LED Strip |
| Part No. | CF-I0810-320-XXR90-24V-L1 |
| Color | Cool White/ Nature White /Warm White/Warm White |
| Wavelength(nm) | 6500K/4000K/3000K/2700K |
| Color Rendering Index(CRI) | ≥90 |
| Input Voltage | 24VDC |
| Rated Current | 0.416A |
| Lumen Output | 1100Lm/1100Lm/1000Lm/1000Lm |
| Total Power(MAX.) | 10W |
| Beam Angle | 170° |
| Life Spa | 50000 hrs |
| Operating Temperature | -20℃ -/+ 60℃ |
| Storage Temperature | -40℃ -/+ 80℃ |
| Application | IP20 |
| Dimmable | Yes |
| RoHS | Yes |
| Cutting Resolution | 100mm |
| SDCM | 5 |
| Material | |
| LED Brand | Epistar |
| Housing | --- |
| PCB | FPC |
