| Place of Origin: | China |
|---|---|
| Brand Name: | Leding |
| Certification: | CE&RoSH |
| Model Number: | AF150-O133XX-L1 |
| Minimum Order Quantity: | 50 Reels |
| Packaging Details: | Reel packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Color: | Cool White Warm White Nature White Red Amber Green... | LED Type: | 5050 |
|---|---|---|---|
| Voltage: | 12V DC | LED Qty.: | 30LEDs/m |
| Color Rendering Index(CRI): | ≥90 | Lumen Output: | 25~180Lm |
| Power(Max.): | 12w/5m | Beam Angle: | 170° |
| Life Span.: | 50000 Hrs. | Dimmable: | NO |
| Cutting Resolution: | 100mm | Application: | IP65 |
| Highlight: | 12V 5050 led flexible strip,Backlighting 5050 led flexible strip,Flexible 12V 5050 led strip |
||

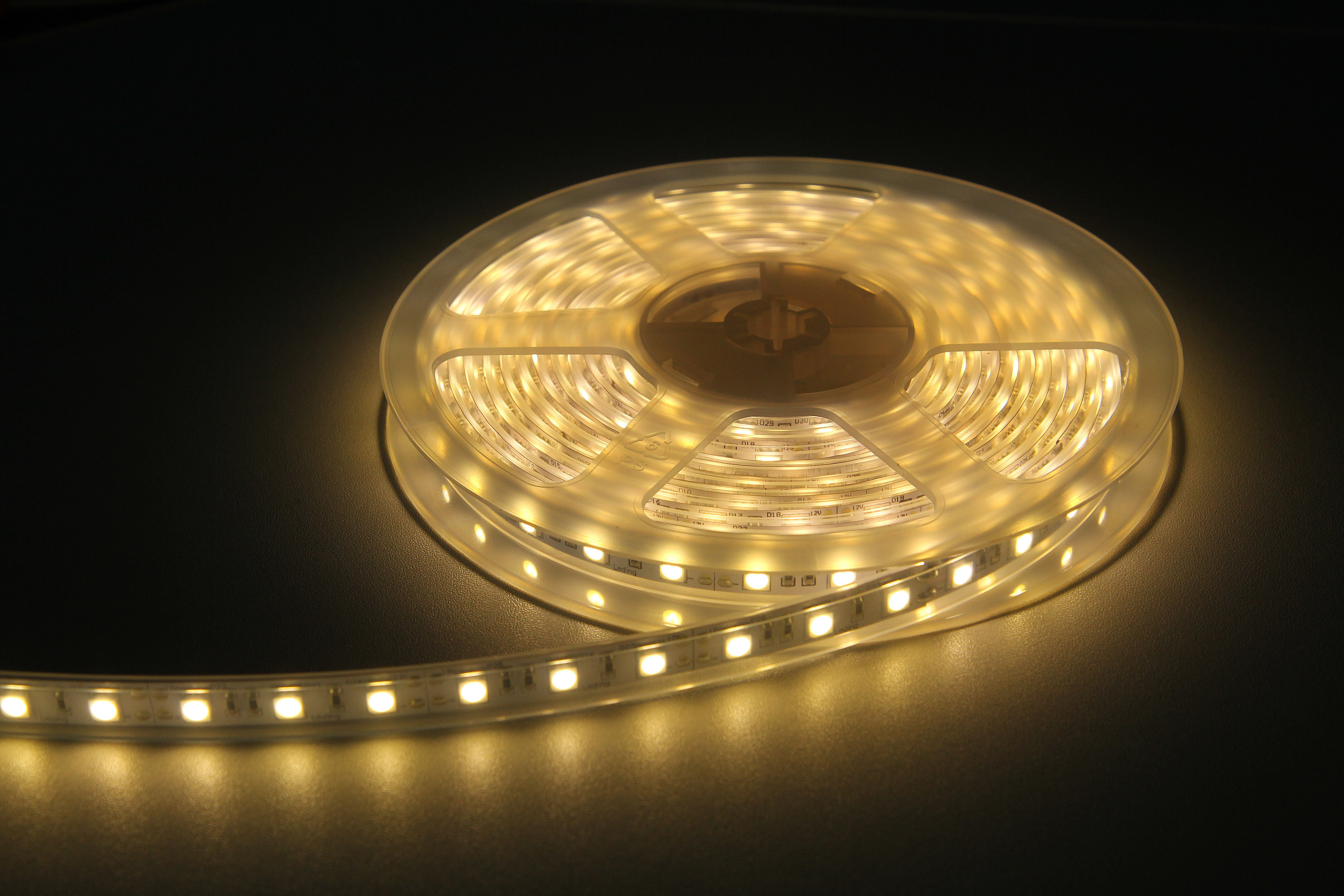

5050 LED Flexible Strips
Description
Leding flexible LED strip provide consistent and reliable illumination for different lighting applications.
Application for building spaces and exterior installations: including back lighting of channel letter, signage and illuminated advertising
Features
- 5050 flexible RGB LED strip with silicon tube
- Low power requirement and igh reliability
- IP65
- Operating temperature range -40℃--60℃
- Easy assembly.Mounting with double sided adhesive tape or silicon buckle
- Optical operation on 12V power supplies
- 30 LED/m 5m/reel,dividable per 100mm.
- Reel packing.
| Part NO. | Color | LED/unit | LED/m | Luminous flux(lm/m) | Viewing Angle | Voltage(V) | Power(W)/m | Packing | |
| MIN | TYP. | 2θ/2 | |||||||
| AF150-O133CW-L1 | Cool White | 3 | 30 | 378 | 477 | 120 | 12 | 7.2 | 5m/reel |
| AF150-O133NW-L1 | Nature White | 3 | 30 | 378 | 477 | 120 | 12 | 7.2 | 5m/reel |
| AF150-O133WW-L1 | Warm White | 3 | 30 | 302 | 382 | 120 | 12 | 7.2 | 5m/reel |
| AF150-O133UR-L1 | Red | 3 | 30 | 198 | 243 | 120 | 12 | 7.2 | 5m/reel |
| AF150-O133AM-L1 | Amber | 3 | 30 | 198 | 243 | 120 | 12 | 7.2 | 5m/reel |
| AF150-O133PG-L1 | Green | 3 | 30 | 342 | 432 | 120 | 12 | 7.2 | 5m/reel |
| AF150-O133TB-L1 | Blue | 3 | 30 | 130.5 | 142 | 120 | 12 | 7.2 | 5m/reel |
