| Place of Origin: | China |
|---|---|
| Brand Name: | Leding |
| Certification: | RoHS |
| Model Number: | LD‐F84RX‐O4040‐24V‐RGB‐S0816 |
| Minimum Order Quantity: | 100 Reels |
| Packaging Details: | Reel packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000M/Month |
| Color: | Full Color | Voltage: | 24V DC |
|---|---|---|---|
| Current: | 0.625A/m | Lumen Output: | R:48Lm / G:164Lm / B:33Lm |
| Power: | 15W/m | Beam Angle: | 120° |
| Life Span(at 25℃): | 50000 Hrs | Application: | IP67 |
| Dimmable: | Yes | Cutting Resolution: | Cut On Wire Per 7Led |
| Highlight: | 4040 LED Neon Signs,LED Neon Signs IP67,24Volt Red LED Neon |
||

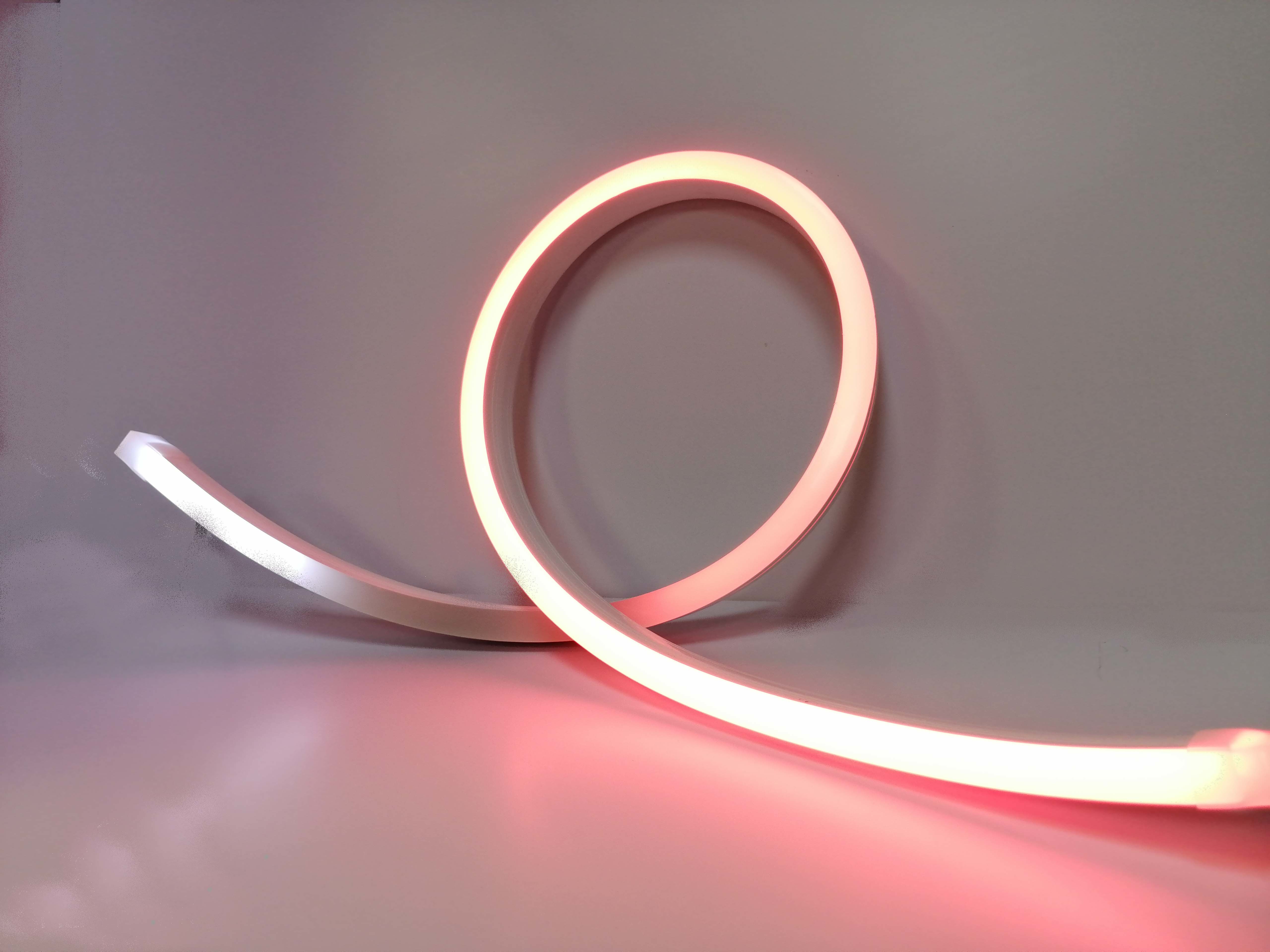

4040LED, 24V, RGB LED neon strips
Neon light from Leding offers a versatile approach to border tube that eliminates light gaps. A side-bending LED neon that provides an excellent solution for linear façade lighting in curved or straight runs, RGBW Neon lets you tune your light to any of 16 million custom colors. Rated IP67 for use in damp and wet locations. The products are designed to bend; use Aluminum Mounting Channel for straight run applications.
Features:
4040 LED
84 LEDs per meter ,5 meter per reel
LED Pitch: 11.9mm ;dividable length:83.33mm
Optical operation on 24V power supplies
Electrical/Optical Characteristics Rating (Ta=20℃)
| Specifications | |
| Product name | Neon Light |
| Part No. | LD‐F84RX‐O4040‐24V‐RGB‐S0816 |
| Colour | Red/Green/Blue |
| Colour Temp(CCT) | 620‐630nm/515‐525nm/460‐470nm |
| Colour Rendering Index(CRI) | ‐‐‐‐ |
| Input Voltage | 24VDC |
| Rated Current | 0.625A/m |
| Lumen Output | R:48Lm / G:164Lm / B:33Lm |
| Total Power | 15W/m |
| Beam Angle | 120° |
| Life Span(at 25℃) | 50000 hrs |
| Operating Temperature | ‐20℃ ‐/+ 60℃ |
| Storage Temperature | ‐40℃ ‐/+ 80℃ |
| Application | IP67 |
| Dimmable | Yes |
| RoHS | Yes |
| Cutting Resolution | Cut on wire per 7Led |
| SDCM | ‐‐‐‐ |
| Material | |
| LED Brand | Epistar |
| Housing | ‐‐‐ |
| PCB | FPC |
