| Place of Origin: | China |
|---|---|
| Brand Name: | Leding |
| Certification: | RoHS CE |
| Model Number: | LD‐F112R80‐02835‐24V‐6500K‐L1‐S0804 |
| Minimum Order Quantity: | 100 Reels |
| Packaging Details: | Reel packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000M/Month |
| Color: | Cool White Nature White Warm White | Voltage: | 24V DC |
|---|---|---|---|
| Current: | 0.20A/m | Lumen Output: | Blue35 Lm/m Red 105 Lm/m White 330 Lm/m |
| Power: | 4.8W/m | Beam Angle: | 120° |
| Life Span(at 25℃): | 50000 Hrs | Application: | IP66 |
| Dimmable: | Yes | Cutting Resolution: | 55.6mm |
| Highlight: | 2835 Neon Flexible Strip Light,Neon Flexible Strip Light 24V,Multifunctional neon flex led strip |
||

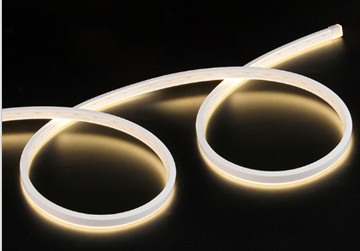

2835LED, 24V, white color LED neon strips
Description
LED light Strip provide consistent and reliable illumination for your various lighting applications. Each Strip is designed with custom scenarios in mind
Features
2835 SMD LED
126 LEDs per meter ,5 meter per reel
LED Pitch: 7.9mm ;dividable length:55.6mm
Optical operation on 24V power supplies
IP66
Electrical/Optical Characteristics Rating (Ta=20℃)
| Specifications | |
| Product name | Flexible LED Strip |
| Part No. |
ARK-LD-F112R80-02835-24V-6500K-L1-S0804 ARK-LD-F112R80-02835-24V-4000K-L1-S0804 ARK-LD-F112R80-02835-24V-3000K-L1-S0804 ARK-LD-F112R80-02835-24V-2700K-L1-S0804 |
| Colour | Cool White/Neutral White/Warm White/Warm White |
| Colour Temp(CCT) | 6500K/4000K/3000K/2700K |
| Colour Rendering Index(CRI) | 80 |
| Input Voltage | 24VDC |
| Rated Current | 0.2A/m |
| Lumen Output | 330Lm/m/330Lm/m/ 280Lm/m/ 280Lm/m |
| Total Power(MAX.) | 4.8W/m |
| Beam Angle | 120° |
| Life Span(at 25℃) | 50000 hrs |
| Operating Temperature | -20℃ -/+ 60℃ |
| Storage Temperature | -40℃ -/+ 80℃ |
| Application | IP66 |
| Dimmable | Yes |
| RoHS | Yes |
| Cutting Resolution | Cut on wire per 7Led |
| SDCM | --- |
| Material | |
| LED Brand | Epistar |
| Housing | --- |
| PCB | FPC |
■ Warning
■ Notice
■ Standard:
Conformity with RoHS Directive 2002/95/EC -
Pb, Cd, Hg, Cr+6, PBBs & PBDSs 6 substances complies to RoHS standard.
