| Place of Origin: | China |
|---|---|
| Brand Name: | Leding |
| Certification: | RoHS |
| Model Number: | LD‐F120R80‐O2835‐24V‐CCT‐S0816 |
| Minimum Order Quantity: | 100 Reels |
| Packaging Details: | Reel packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000M/Month |
| Color: | Full Color | Voltage: | 24V DC |
|---|---|---|---|
| Current: | 0.625A/m | Lumen Output: | R:48Lm / G:164Lm / B:33Lm |
| Power: | 15W/m | Beam Angle: | 120° |
| Life Span(at 25℃): | 50000 Hrs | Application: | IP67 |
| Dimmable: | Yes | Cutting Resolution: | Cut On Wire Per 6Led |
| Highlight: | 2835 flexible neon led strip,flexible neon led strip IP67,5Meters neon flex strip light |
||

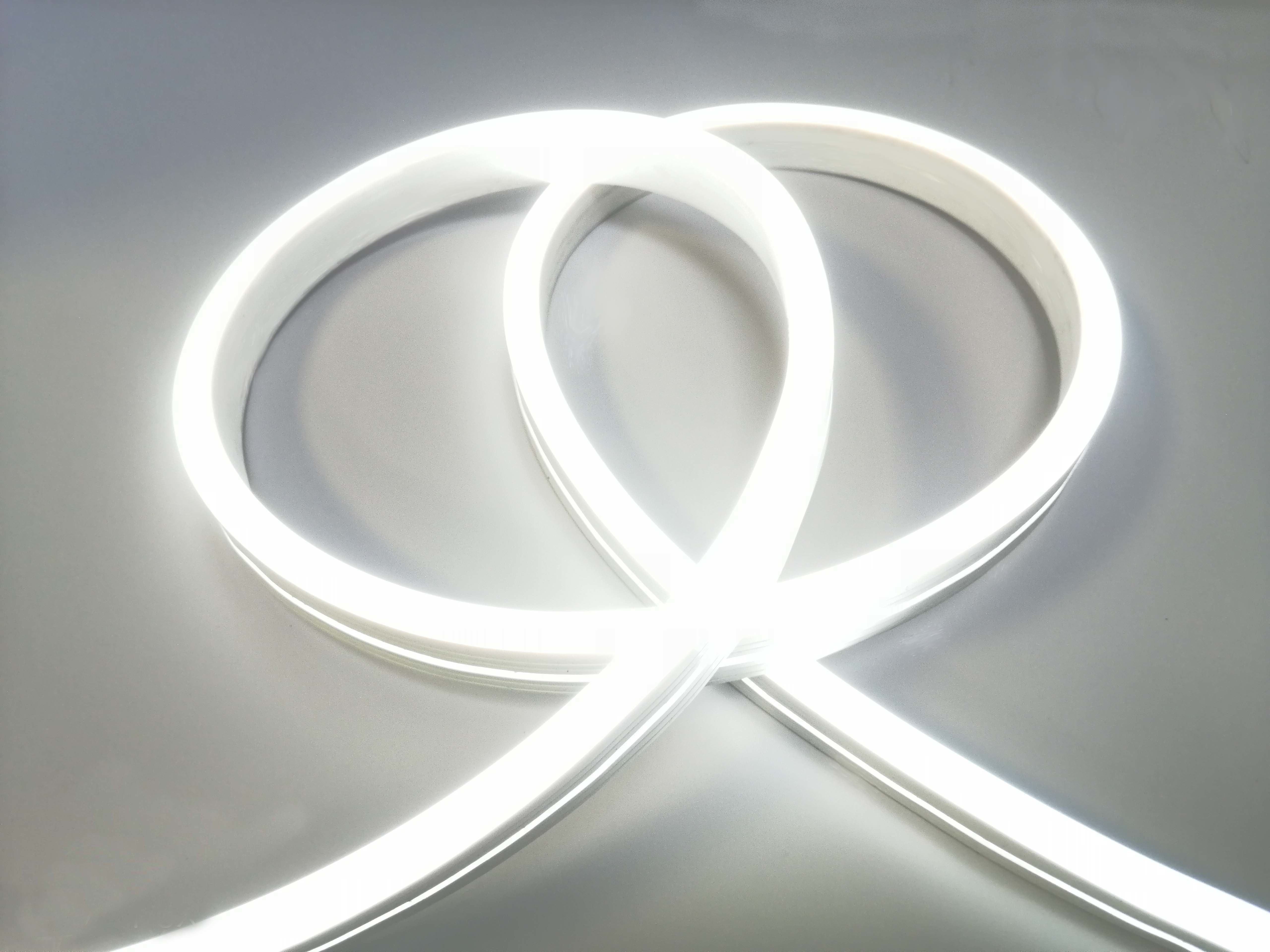

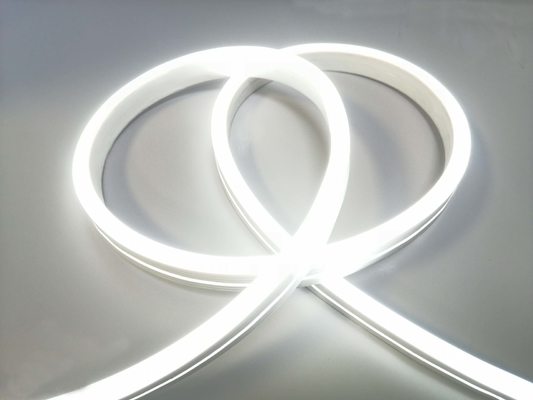

IP67, 5meters, Full color LED neon strips
Neon light from Leding offers a versatile approach to border tube that eliminates light gaps. A side-bending LED neon that provides an excellent solution for linear façade lighting in curved or straight runs, RGBW Neon lets you tune your light to any of 16 million custom colors. Rated IP67 for use in damp and wet locations. The products are designed to bend; use Aluminum Mounting Channel for straight run applications.
Features:
2835 LED
120 LEDs per meter ,5 meter per reel
LED Pitch: 8.33mm ;dividable length:50mm
Optical operation on 24V power supplies
Electrical/Optical Characteristics Rating (Ta=20℃)
| Specifications | |
| Product name | Neon Light |
| Part No. | LD‐F120R80‐O2835‐24V‐CCT‐S0816 |
| Colour | Cool White/Neutral white/ Warm white / Warm white/Red/Green/Blue/Yellow |
| Colour Temp(CCT) | 6500K/4000K/3000K/2700K/620‐630nm/515‐525nm/460‐470nm/585‐595nm |
| Colour Rendering Index(CRI) | ≥80 |
| Input Voltage | 24VDC |
| Rated Current | 0.415A/m |
| Lumen Output | 450Lm/m/450Lm/m/380Lm/m/380Lm/m/108Lm/m/203Lm/m/53Lm/m/73Lm/m |
| Total Power | 10W/m |
| Beam Angle | 120° |
| Life Span(at 25℃) | 50000 hrs |
| Operating Temperature | ‐20℃ ‐/+ 60℃ |
| Storage Temperature | ‐40℃ ‐/+ 80℃ |
| Application | IP67 |
| Dimmable | Yes |
| RoHS | Yes |
| Cutting Resolution | Cut on wire per 6Led |
| SDCM | 5 step |
| Material | |
| LED Brand | Epistar |
| Housing | ‐‐‐ |
| PCB | FPC |
| PART NO. | Color | CCT |
| LD‐F120R80‐O2835‐24V‐6500K‐S0816 | Cool White | 6500K |
| LD‐F120R80‐O2835‐24V‐4000K‐S0816 | Nature White | 4000K |
| LD‐F120R80‐O2835‐24V‐3000K‐S0816 | Warm white | 3000K |
| LD‐F120R80‐O2835‐24V‐2700K‐S0816 | Warm white | 2700K |
| LD‐F120R80‐O2835‐24V‐Red‐S0816 | Red | 620‐630nm |
| LD‐F120R80‐O2835‐24V‐Green‐S0816 | Green | 515‐525nm |
| LD‐F120R80‐O2835‐24V‐Blue‐S0816 | Blue | 460‐470nm |
| LD‐F120R80‐O2835‐24V‐Yellow‐S0816 | Yellow | 585‐595nm |
