| Place of Origin: | China |
|---|---|
| Brand Name: | Leding |
| Certification: | RoHS CE |
| Model Number: | LD-F126RX-02835-24V-XX-L1-S1004 |
| Minimum Order Quantity: | 100 Reels |
| Packaging Details: | Reel packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 20000M/Month |
| Color: | Blue Red Cool White | Voltage: | 24V DC |
|---|---|---|---|
| Current: | 0.41A/m | Lumen Output: | Blue35 Lm/m Red 105 Lm/m White 330 Lm/m |
| Power: | 10W/m | Beam Angle: | 120° |
| Life Span(at 25℃): | 50000 Hrs | Application: | IP20 |
| Dimmable: | Yes | Cutting Resolution: | 55.6mm |
| Highlight: | LED Neon Signs 24V,IP20 LED Neon Signs,Multifunctional neon led 24v |
||

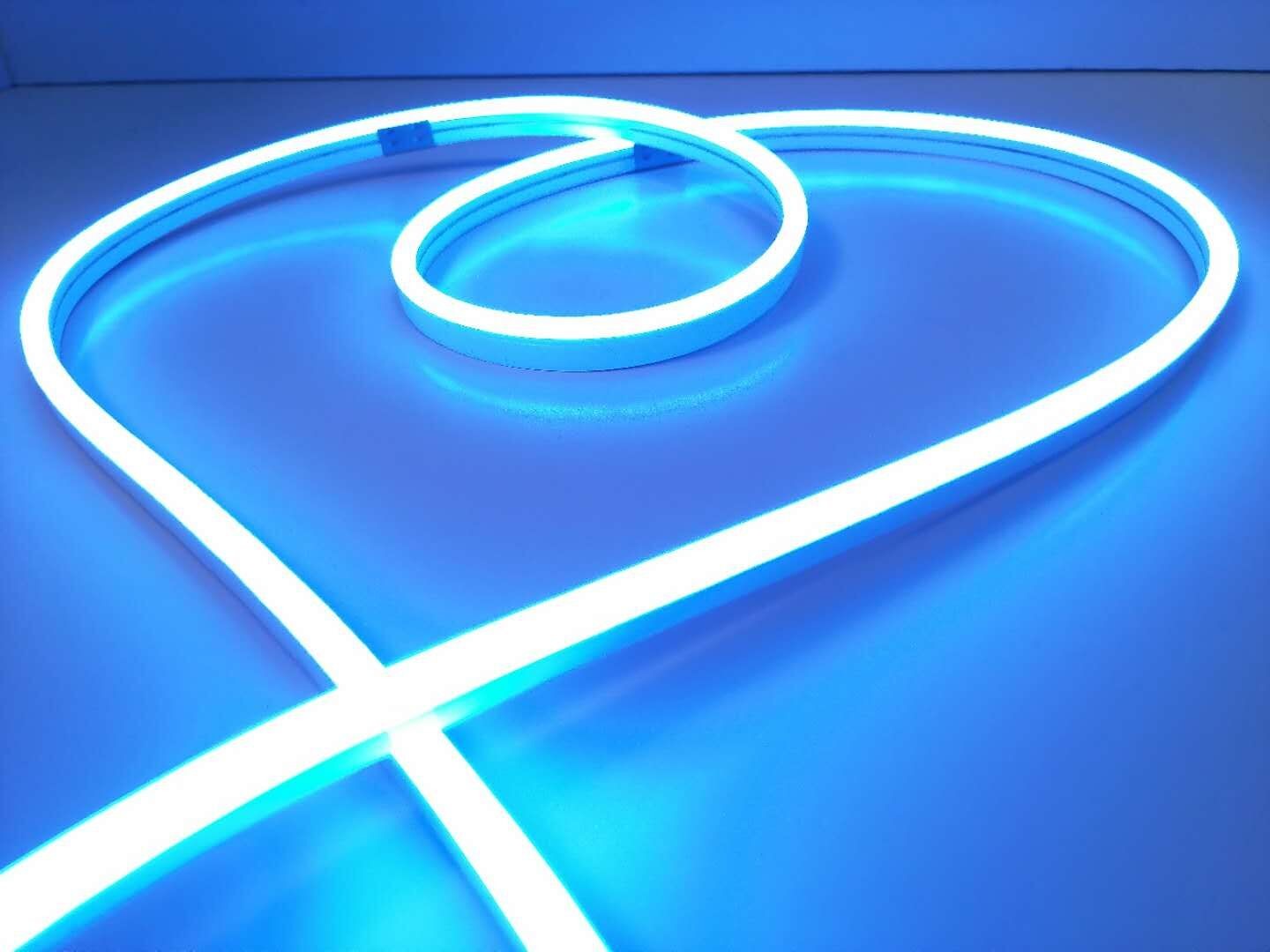

2835LED, 24V, Single Color LED Neon Strips
Description
LED light Strip provide consistent and reliable illumination for your various lighting applications. Each Strip is designed with custom scenarios in mind
Features
Electrical/Optical Characteristics Rating (Ta=20℃)
| Specifications | |
| Product name | LED Strip |
| Part No. |
LD-F126RX-02835-24V-Blue-L1-S1004 LD-F126RX-02835-24V-Red-L1-S1004 LD-F126RX-02835-24V-5700K-L1-S1004 |
| Colour | Blue/Red/ Cool White |
| Colour Temp(CCT) | 460-470nm/620-630nm/5700K |
| Colour Rendering Index(CRI) | ≥90 |
| Input Voltage | 24VDC |
| Rated Current | 0.41A/m |
| Lumen Output | 35 Lm/m 105 Lm/m 330 Lm/m |
| Total Power | 10W/m |
| Beam Angle | 120° |
| Life Span(at 25℃) | 50000 hrs |
| Operating Temperature | -20℃ -/+ 60℃ |
| Storage Temperature | -40℃ -/+ 80℃ |
| Application | IP20 |
| Dimmable | Yes |
| RoHS | Yes |
| Cutting Resolution | 55.6mm |
| SDCM | 3 step |
| Material | |
| LED Brand | Epistar |
| Housing | Silicone |
| PCB | FPC |
Dimensions(mm) :
