| Place of Origin: | China |
|---|---|
| Brand Name: | Leding |
| Certification: | CE |
| Model Number: | M7W-200-XX-L1-24V |
| Minimum Order Quantity: | 2000 |
| Packaging Details: | Carton box |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Color: | Red, Amber, Green Or Blue | Voltage: | 15V DC |
|---|---|---|---|
| Power: | 1.5w/Module | Beam Angle: | 160° |
| Waterproof: | IP66 | Lifetime: | 50000 Hrs |
| Highlight: | Waterproof Channel Letter LED Modules,Amber Channel Letter LED Modules,Green led module waterproof |
||
Full color channel letter LED modules
Description

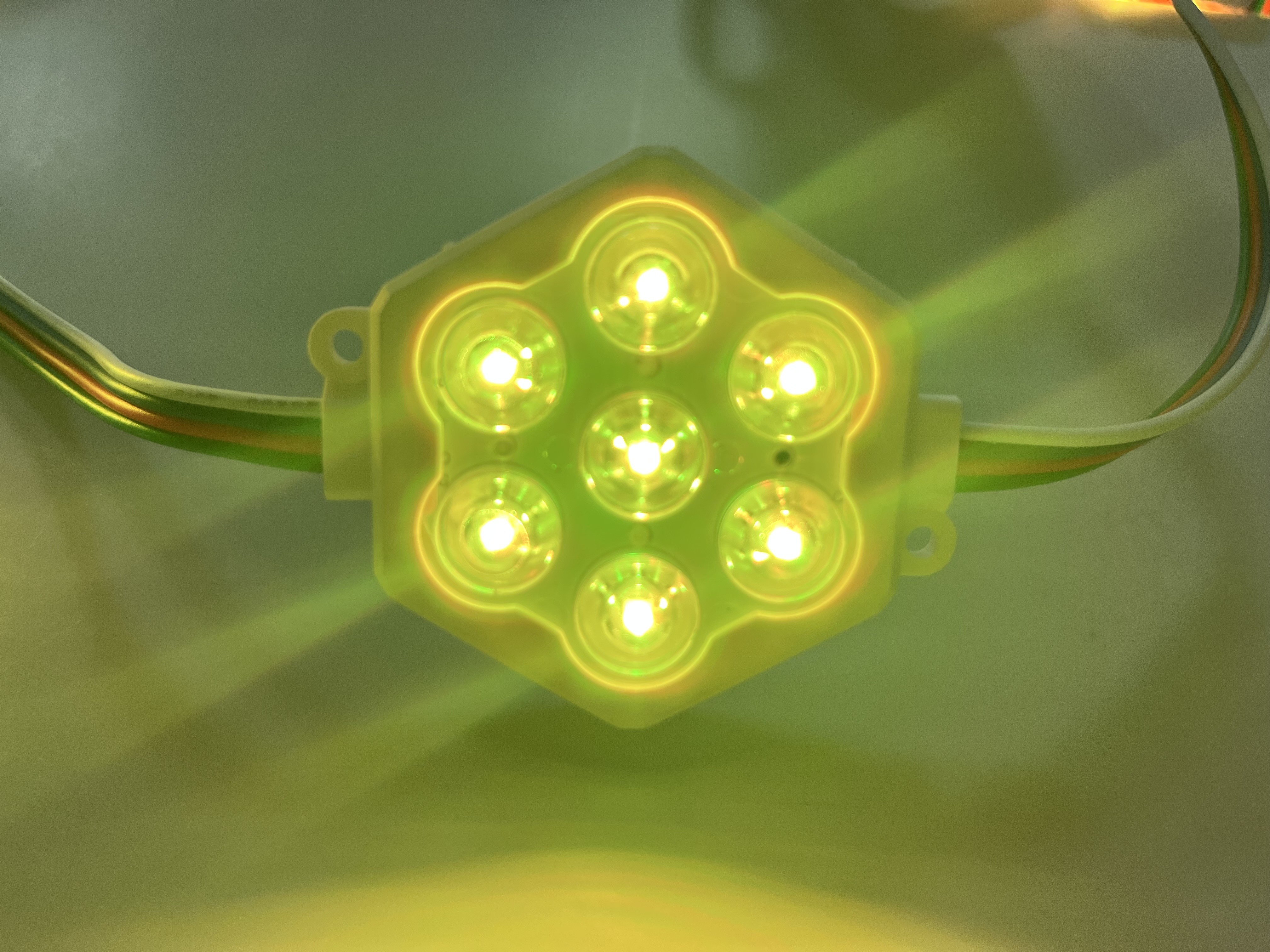

Each M7W module features 7 LEDs— great light coverage for channel letters, box signs and cove lighting. It is available in red, amber, green or blue color. It has an IP66 rating and a 3-year warranty.
Features
Technical feature
-50 modules per chain
-The maximum length of the entire chain is 10.9m(pitch is 215mm)
-Mounting with mounting holes and adhesive tape
-Optical operation on 24V power supplies (50modules/125W)
Electrical/Optical Characteristics Rating (Ta=25℃)
| Specifications | |
| Product name | LED Module Chain |
| Part No. | M7W-200-XX-L1-24V |
| Colour | Red 620-630nm/Green 515-525nm/Blue 460-470nm |
| Colour Rendering Index(CRI) | >=80 |
| Input Voltage | 24VDC |
| Rated Current | 104mA |
| Lumen Output | 315Lm/300Lm/285Lm |
| Total Power | 2.5W |
| 50Beam Angle | 145° |
| Life Span | 50000hrs |
| Operating Temperature | -20℃-+60℃ |
| Storage Temperature | -40℃-+80℃ |
| Application | Outdoor(IP66) |
| Dimmable | Yes |
| RoHS | Yes |
| Material | |
| LED Brand | Epistar |
| Housing | TPEX |
| PCB | FR4 |
