| Place of Origin: | China |
|---|---|
| Brand Name: | Leding |
| Certification: | CE |
| Model Number: | M3W-J1B-FU-L1 |
| Minimum Order Quantity: | 2000 |
| Packaging Details: | Carton box |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Color: | Full Color | Voltage: | 12V DC |
|---|---|---|---|
| Power: | 0.72w/Module | Beam Angle: | 120° |
| Waterproof: | IP66 | ||
| Highlight: | Led Module 12 Volt 0.72w,IP66 Led Module 12 Volt,Marquee Letters 12 volt led module |
||

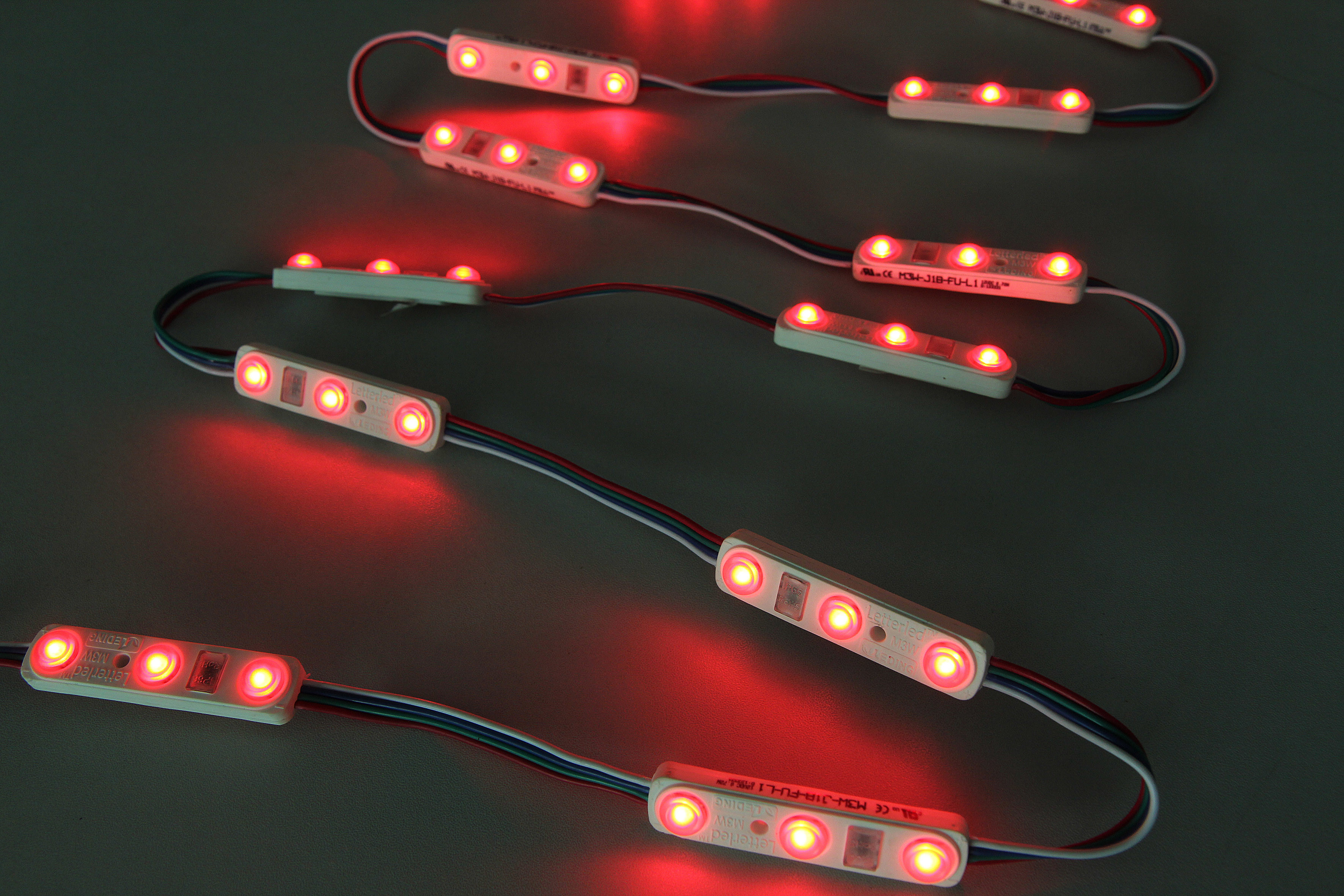

Full color LED modules for marquee letters
Each M3W module features three LEDs and produces 40 lumens — great light coverage for channel letters, box signs and cove lighting. It is available in full color. It has an IP66 rating and a 3-year warranty.
Technical feature
-60 modules per chain
-The maximum length of the entire chain is 9.1m(pitch is 152mm)
-Mounting with mounting holes and adhesive tape
-Optical operation on 12V power supplies (15modules/15W,30modules/30W,60modules/60W)
| Product number | Color | No.of led module per chain | Power supply(VDC) | Power chain/module(W) | View angle(°) | Wavelength(nm) |
Lum.flux Chain/module(lm) |
| M3W-J1B-FU -L1 | RED | 60 | 12 | 43/0.72 | 160 | 625nm | 900/15 |
| GREEN | 525nm | 450/7.5 | |||||
| BLUE | 470nm | 270/4.5 |
