| Place of Origin: | China |
|---|---|
| Brand Name: | Leding |
| Certification: | CE |
| Model Number: | M3W-J1B-XX-L1 |
| Minimum Order Quantity: | 2000 |
| Packaging Details: | Carton box |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| CCT: | 6500K/4500K/3000K/2700K | Voltage: | 12V DC |
|---|---|---|---|
| Power: | 0.72w/Module | Beam Angle: | 120° |
| Waterproof: | IP66 | ||
| Highlight: | Warm White Led Module 12v,Warm White Led Module 2700K,IP66 Led Module 12v |
||

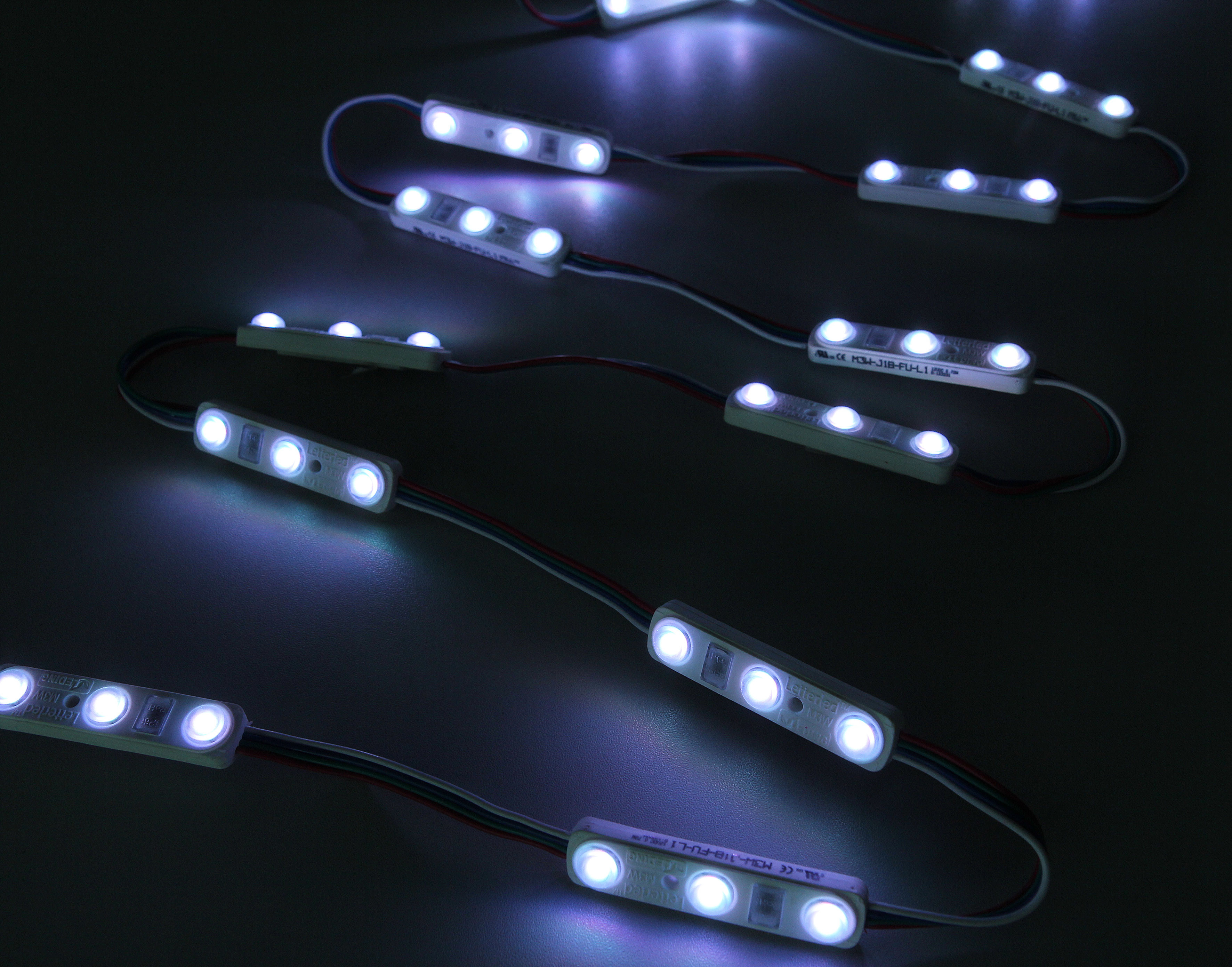

Cool White And Warm White Color LED Modules For Marquee Letters
Each M3W module features three LEDs and produces 40 lumens — great light coverage for channel letters, box signs and cove lighting. It is available in different CCT. It has an IP66 rating and a 3-year warranty.
Technical feature
-60 modules per chain
-The maximum length of the entire chain is 9.1m(pitch is 152mm)
-Mounting with mounting holes and adhesive tape
-Optical operation on 12V power supplies (15modules/15W,30modules/30W,60modules/60W)
| Product number | Color | No.of led module per chain | Power supply(VDC) | Power chain/module(W) | View angle(°) |
Wavelength(nm)/ Color temp(K) |
Lum.flux Chain/module(lm) |
| M3W-S6B-27-L1 | Warm white | 50 | 12 | 60/1.2 | 160 | 2700K | 4250/85 |
| M3W-S6B-30-L1 | Warm white | 50 | 12 | 60/1.2 | 160 | 3000K | 4250/85 |
| M3W-S6B-45-L1 | Nature white | 50 | 12 | 60/1.2 | 160 | 4500K | 5000/100 |
| M3W-S6B-65-L1 | Cool white | 50 | 12 | 60/1.2 | 160 | 6500K | 5000/100 |
