| Place of Origin: | China |
|---|---|
| Brand Name: | InterLED |
| Certification: | RoHS |
| Model Number: | SD1-391XX-A22/C22 |
| Minimum Order Quantity: | 2000 |
| Packaging Details: | Carton |
| Delivery Time: | 3-4 weeks |
| Clour: | White,Red, Blue... | Mounting: | THT (Through-Hole Technology) |
|---|---|---|---|
| Function: | Graphics | Colour: | All Colors |
| Common Pin: | Common Anode/cathode | Made In: | China |
| Lifetime: | 50000Hrs | OEM Or ODM: | Yes |
| Applicaiton: | Indoor | ||
| Highlight: | 0.39 Inch LED SMD Display,LED SMD Display Single Digit,SMD Common Anode Seven Segment Display |
||

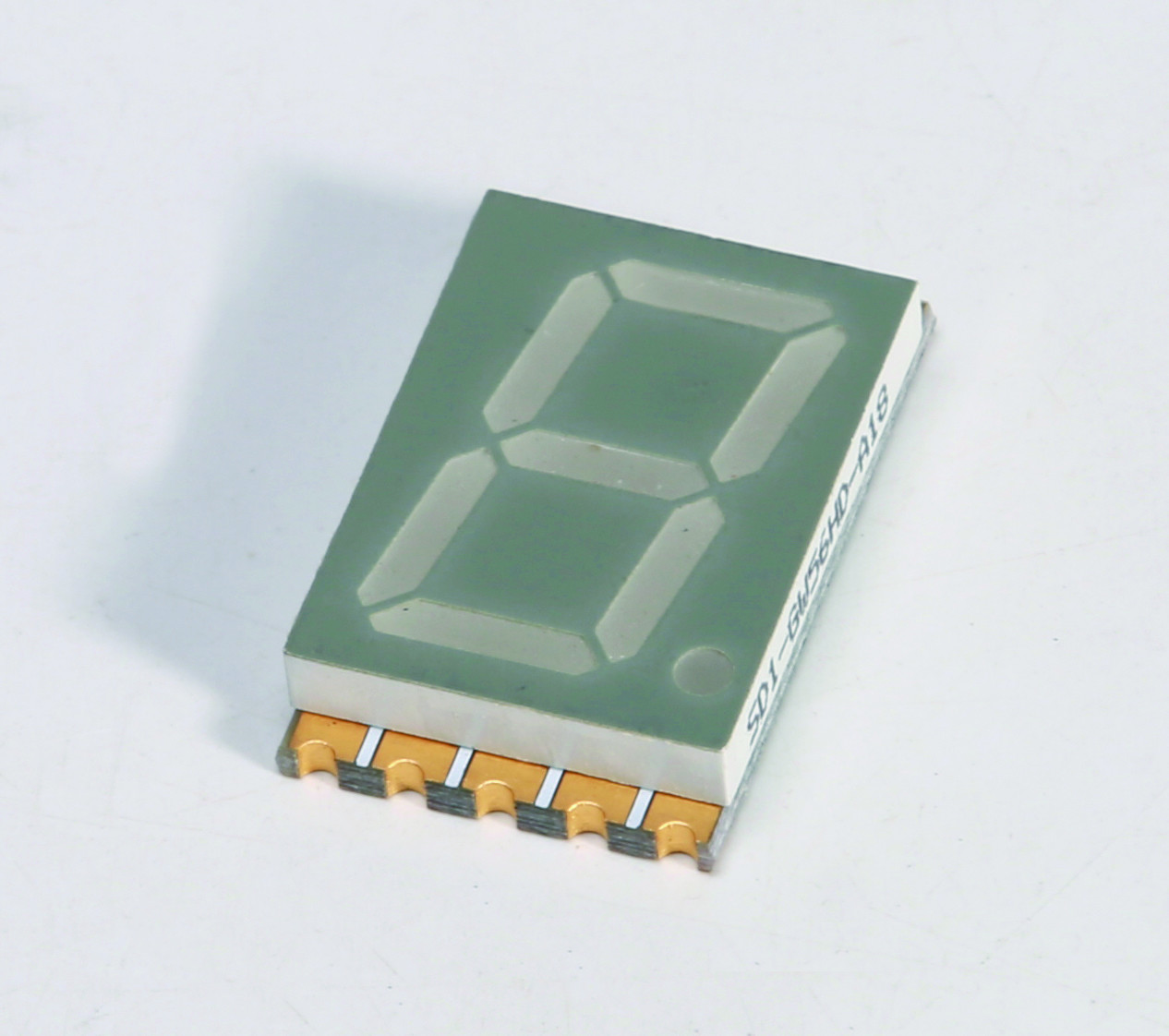

Single Digit 0.39 Inch SMD Seven Segment Display
Features
• 0.39 inch (10.0mm) digit height
• Liftetime 30000 HRS
• RoHS compliant.
• Low power consumption.
• Easy mounting on P.C. board .
Descriptions
• 0.39 Inch Single Digit SMD Display
• Common Anode
• Common Cathode
• Emitting Color:Pure Green, Yellow Green, Yellow, Amber, Orange, Red, Deep Red
• Standard: Gray face, white segment.
Technical Data
| Digit Size | Part No. | Chip | Wave Length | Electro-optical Data(@10mA) | ||
| Common Anode | Common Cathode | Materials/Emmited Color | Vf(Typ.) | Iv. Typ per Seg. | ||
| λd(nm) | v | mcd | ||||
| 0.39" | SD1-391TB-A22 | SD1-391TB-C22 | InGaN/Blue | 465~475 | 2.8~3.4 | 10 |
| SD1-391PG-A22 | SD1-391PG-C22 | InGaN/Pure green | 520~530 | 2.8~3.6 | 30 | |
| SD1-391S3-A22 | SD1-391S3-C22 | AlGaInP/Orange | 600~610 | 1.8~2.4 | 4 | |
| SD1-391UG-A22 | SD1-391UG-C22 | AlGaInP/Yellow | 568~575 | 1.8~2.4 | 3.5 | |
| SD1-391UR-A22 | SD1-391UR-C22 | AlGaInP/Red | 628~637 | 1.8~2.4 | 3 | |
