| Place of Origin: | China |
|---|---|
| Brand Name: | InterLED |
| Certification: | RoHS |
| Model Number: | SD1-201XX-A11/C11 |
| Minimum Order Quantity: | 2000 |
| Packaging Details: | Carton |
| Delivery Time: | 3-4 weeks |
| Clour: | White,Red, Blue... | Mounting: | THT (Through-Hole Technology) |
|---|---|---|---|
| Function: | Graphics | Colour: | All Colors |
| Common Pin: | Common Anode/cathode | Made In: | China |
| Lifetime: | 50000Hrs | OEM Or ODM: | Yes |
| Applicaiton: | Indoor | ||
| Highlight: | OEM single digit 7 segment display,SMD single digit 7 segment display,0.2 Inch Single Digit Display |
||

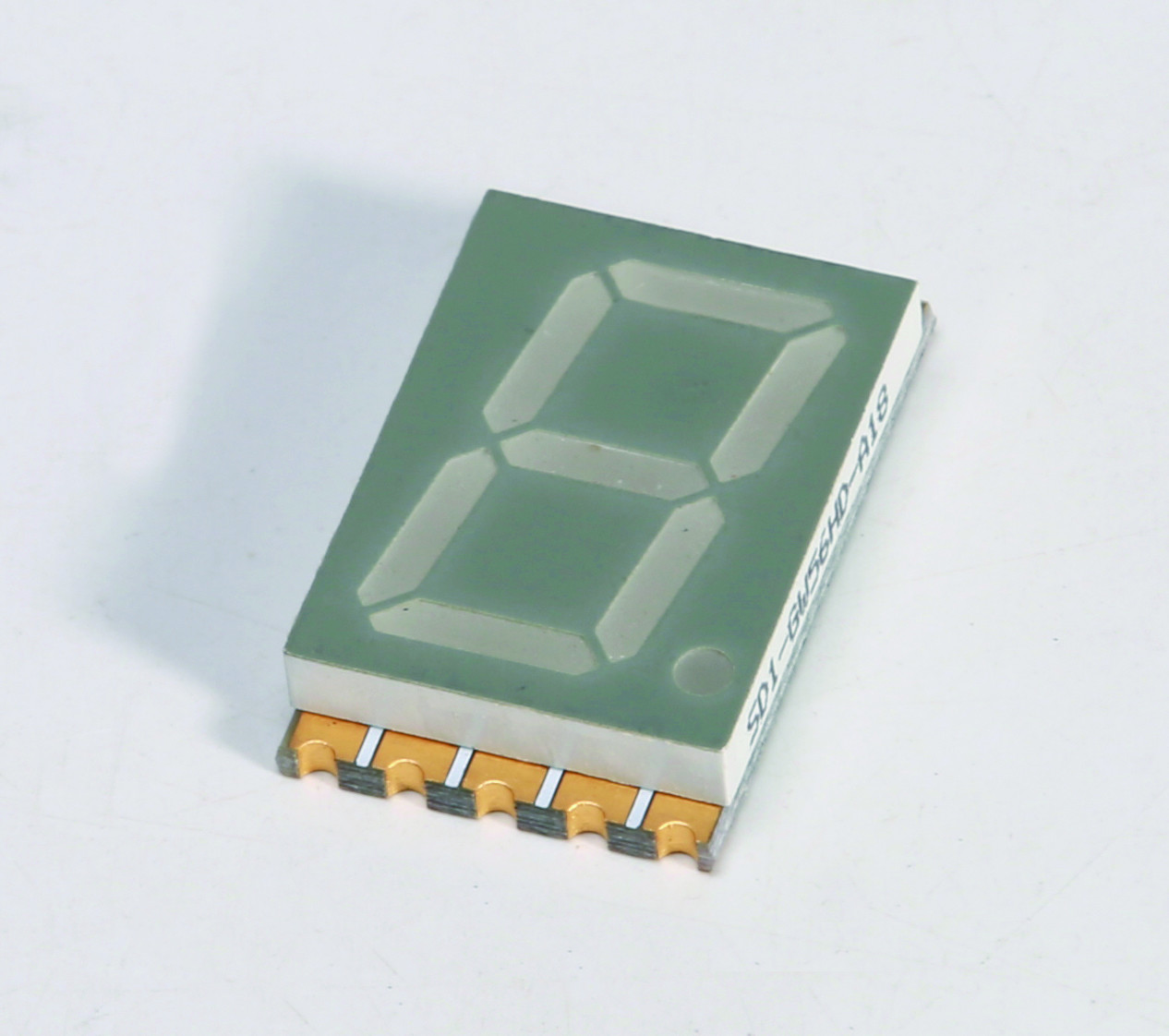

Single Digit 0.20 Inch SMD Indoor Seven Segment Display
Features
• 0.20 inch (5.08mm) digit height
• Liftetime 30000 HRS
• RoHS compliant.
• Low power consumption.
• Easy mounting on P.C. board .
Descriptions
• 0.20 Inch Single Digit SMD Display
• Common Anode
• Common Cathode
• Emitting Color:Pure Green, Yellow Green, Yellow, Amber, Orange, Red, Deep Red
• Standard: Gray face, white segment.
Technical Data
| Digit Size | Part No. | Chip | Wave Length | Electro-optical Data(@10mA) | ||
| Common Anode | Common Cathode | Materials/Emmited Color | Vf(Typ.) | Iv. Typ per Seg. | ||
| λd(nm) | v | mcd | ||||
| 0.2" | SD1-201HR-A11 | SD1-201HR-C11 | AlGaInP/Super-Red | 618~625 | 1.8~2.3 | 4 |
| SD1-201YG-A21 | SD1-201YG-C21 | GaP/Yellow-Green | 568~573 | 1.8~2.4 | 1.5 | |
| SD1-201TB-A21 | SD1-201TB-C21 | InGaN/Blue | 465~475 | 2.8~3.6 | 8 | |
