| Place of Origin: | China |
|---|---|
| Brand Name: | InterLED |
| Certification: | RoHS |
| Model Number: | BL003-062024XX-01 |
| Minimum Order Quantity: | 2000 |
| Packaging Details: | Carton box |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500KK per month |
| Color: | White, Red, Blue... | Colour: | White, Red, Amber, Blue... |
|---|---|---|---|
| Mounting: | THT (Through-Hole Technology) | Lifetime: | 50000Hrs |
| Highlight: | Multifunctional Back Led Light,Back Led Light ODM,OEM led back light |
||
LED Backlights Despription

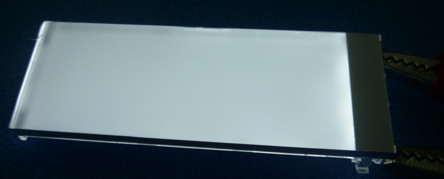

LED backlights are a very unique type of LED. These LEDs are embedded in a special light diffusing plastic, which gives them a nice even glow over a large flat area. Typically these LED panels are used behind small character displays, but on their own they can be used for a variety of applications where a large, even, backlighting effect is desired. The LED would be considered a cool white color; gels can be applied to change the color as needed.
Selection Gude
| Part No. | Color | Electro-optical Data (At 10mA)(per LED) | Drawing No. | |||
| Common Anode | Emitted Color | Wave Length | VF (V) | Iv.Typ. Per.Seg. (mcd) | ||
| λD(nm) | Typ. | |||||
| BL003-062024TB-01 | Blue | 465 | 3.2 | BL-08 | ||
| BL003-062024PG-01 | Pure green | 525 | 3.2 | |||
| BL003-062024GU-01 | Yellow Green | 570 | 2.15 | |||
| BL003-062024UG-01 | Yellow Green | 570 | 2.1 | |||
| BL003-062024UY-01 | Yellow | 590 | 2.05 | |||
| BL003-062024YO-01 | Yellow orange | 605 | 2.05 | |||
| BL003-062024HO-01 | Orange | 615 | 2.1 | |||
| BL003-062024UR-01 | Red | 630 | 2 | |||
| BL003-062024CW-01 | white | 3.2 | ||||
