| Place of Origin: | China |
|---|---|
| Brand Name: | InterLED |
| Certification: | RoHS |
| Model Number: | BL002-045040XX-01 |
| Minimum Order Quantity: | 2000 |
| Packaging Details: | Carton box |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500KK per month |
| Colour: | White, Red, Amber, Blue... | Mounting: | THT (Through-Hole Technology) |
|---|---|---|---|
| Lifetime: | 50000Hrs | Size: | 45x40mm |
| Highlight: | 45x40mm LED Backlight Lighting,LED Backlight Lighting High Brightness,LED Backlight Lighting THT |
||

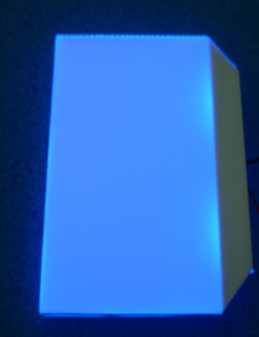

45x40mm LED Backlight Display
Features:
1. High brightness
2. Good Uniformity
3. White Color
4. Low Power Dissipation, Long Life
5. Emitting Color:Pure Green, Red, White.
LED Backlight Display Selection Guide
| Part No. | Chip | Electro-optical Data (At 10mA)(per LED) | |||
| Emitted Color | Wave Length | VF (V) | Iv.Typ. Per.Seg. (mcd) | ||
| λD(nm) | Typ. | ||||
| BL002-045040TB-01 | Blue | 465 | 3.2 | ||
| BL002-045040PG-01 | Pure green | 525 | 3.2 | ||
| BL002-045040GU-01 | Yellow Green | 570 | 2.15 | ||
| BL002-045040UG-01 | Yellow Green | 570 | 2.1 | ||
| BL002-045040UY-01 | Yellow | 590 | 2.05 | ||
| BL002-045040YO-01 | Yellow orange | 605 | 2.05 | ||
| BL002-045040HO-01 | Orange | 615 | 2.1 | ||
| BL002-045040UR-01 | Red | 630 | 2 | ||
| BL002-045040CW-01 | white | 3.2 | |||
