| Place of Origin: | China |
|---|---|
| Brand Name: | Leding |
| Certification: | CE |
| Model Number: | M1S-J5A-XX-L1H |
| Minimum Order Quantity: | 2000 |
| Packaging Details: | Carton box |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Color: | Cool White Nature White Warm White | Voltage: | 12V DC |
|---|---|---|---|
| Power: | 1.4w/Module | Beam Angle: | 20*40 |
| Waterproof: | IP65 | Lifetime: | 30000 Hrs |
| Highlight: | IP65 Channel Letter Led Modules,Channel Letter Led Modules 12V,Waterproof Led Module White |
||

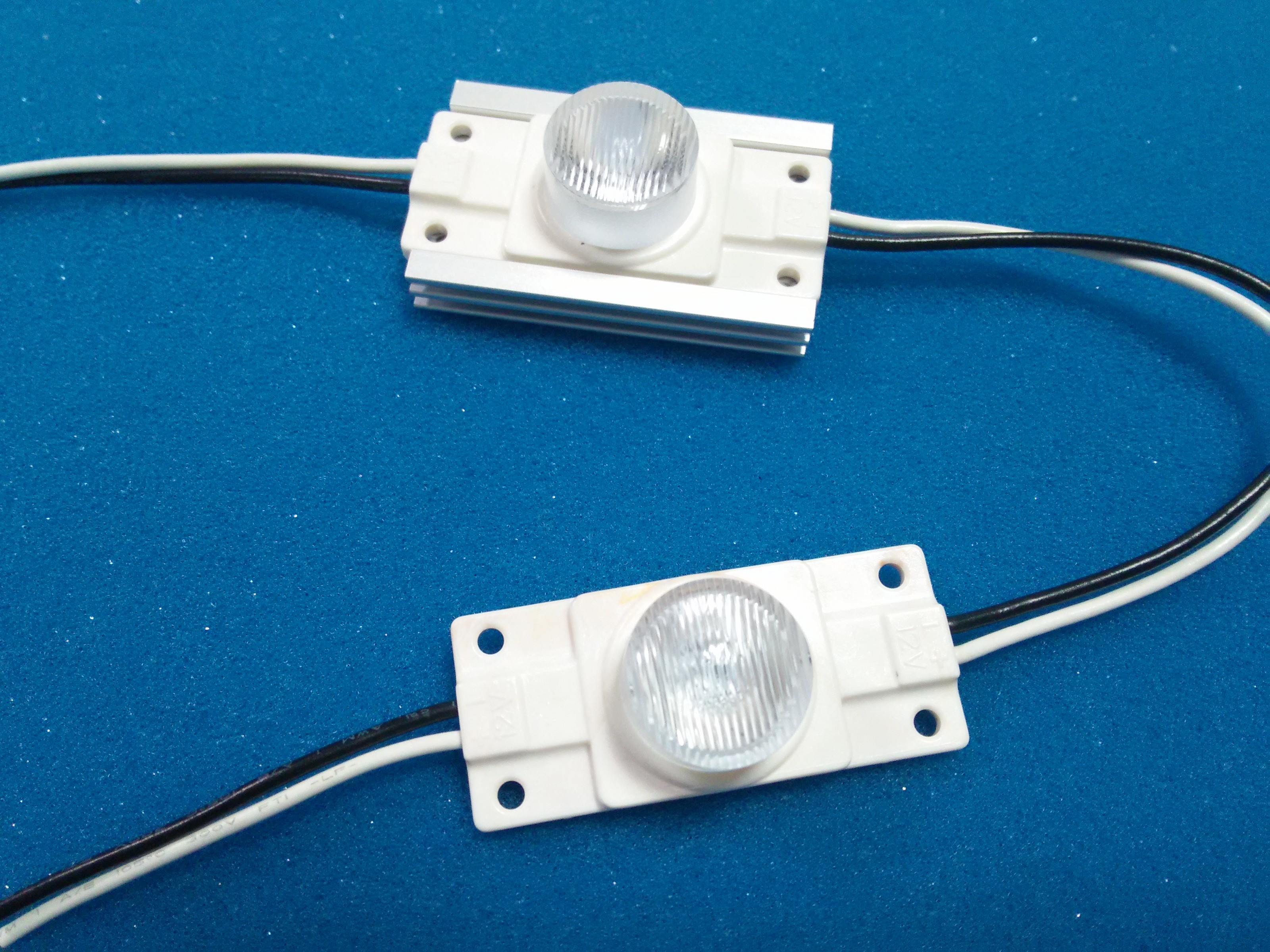

White color channel letter LED modules
Description
High reliability-Low power requirement
No UV or IR radiation
IP65 water proof
Operating temperature range -20C--60C
Easy assembly
Features
-15 modules per chain
-The maximum length of the entire chain is 3.2m(pitch is 195mm)
-Mounting with mounting holes and adhesive tape
-Optical operation on 12V power supplies
Electrical/Optical Characteristics Rating (Ta=25℃)
| Specifications | |
| Product name | LED Module Chain |
| Part No. | M1S-J5A-XX-L1H |
| CCT | 6500K |
| Colour Rendering Index(CRI) | >=80 |
| Input Voltage | 12VDC |
| Power chain/module(W) |
42/1.4 |
| Lumen Output | 210/module |
| Beam Angle | 20*40 |
| Life Span | 30000hrs |
| Operating Temperature | -20℃-+60℃ |
| Storage Temperature | -40℃-+80℃ |
| Application | Outdoor(IP65) |
| Dimmable | Yes |
| RoHS | Yes |
| Material | |
| LED Brand | Epistar |
| Housing | Plastic+AL |
| PCB | FR4 |
Selection Guide
|
Product number |
Color |
No.of led module per chain |
Power supply (VDC) |
Power chain/module(W) |
View angle (°) |
Wavelength(nm)/ Color temp(K) |
Lum.flux Chain/module(lm) |
| M1S-J5A-27-L1H | Warm white | 30 | 12 | 42/1.4 | 20*40 | 2700K | 3000/100 |
| M1S-J5A-30-L1H | Warm white | 30 | 12 | 42/1.4 | 20*40 | 3000K | 3000/100 |
| M1S-J5A-45-L1H | Nature white | 30 | 12 | 42/1.4 | 20*40 | 4500K | 3300/110 |
| M1S-J5A-65-L1H | Cool white | 30 | 12 | 42/1.4 | 20*40 | 6500K | 3300/110 |
